BR 52 Kriegslokomotive
BR 52 "2495", delivered in early 1944, loading water
The German Reichsbahn's class BR 52, also known as the "Kriegslokomotive" [war locomotive], was built in large numbers from September of 1942 onwards, totalling more than 6,700 units.
Their main task was to cover the German Wehrmacht's enormous supply needs in the occupied eastern territories and, on the other hand, to bring the captured goods back to the Reich.
The Class 52 was an "unrefined" version of the reliable Class BR 50, which had been initially continued to be built at the beginning of the war as a transitional war locomotive ("ÜK").
"Unrefined" meaning that approximately 6,000 parts were changed or eleminated thus saving a large amount of sparse and/or expensive raw material.
For example, most of the locomotives were not equipped with smoke deflectors / windshields, as these panels were part of the savings in production and could only become effective at a speed of 80 km/h, which the BR 52 could not reach.
At the Borsig plant, February 1943
BR 52 "2495" trailing the standard type "2 2 T32" Vanderbild Wannentender

In order to be able to deliver the required number, the German locomotive factories were brought together to form the Association of Greater German Locomotive Manufacturers ("GGL").
So, the 52 series was built primarily at the following plants :

  • Henschel at Kassel – 1,050 pieces,
  • Wiener Lokomotibenfabrik WLF at Vienna - 1,053 pieces,
  • Berliner Maschinenbau AG (L. Schwartzkopff) at Berlin - 647 pieces,
  • F.Schichau at Elbing - 505 pieces,
  • DWM at Posen - 314 pieces,
  • Krauss-Maffei at Munich - 613 pieces,
  • Rheinmetall-Borsig at Berlin - 542 pieces,
  • Skoda at Skoda - 153 units.
Lined up at the Krauss-Maffei plant
To demonstrate the unbroken performance of the German locomotive industry, a large parade of war locomotives for press and newsreels was held in the Seddin marshalling yard on July 7, 1943. At a command, 51 locomotives, the highest daily(!) output of all German locomotive works, set in motion at the same time.
BR 52 "077" trailing the rare type "4 T 30" Steifrahmentender, in winter camo
In contrast to the overly enthusiastic propaganda, the experiences in later operational use, with its many failures and long list of defects, gave a totally different picture.
A lot proved to be immature, sloppy work, sabotage and repeatedly discovered material defects discredited the war locomotive's reputation in the eyes of the staff.
Finally, many of the labor hours saved in production now had to be spent for repair in the depots and factories.
BR 52 in winter camo, Königsberg Dec 1944
However, although only a short service life of 5 years was planned for the war locomotive, after the war, the many functioning locomotives in all parts of Europe were indispensable for reconstruction for a long time, so that some of them reached service times of 50 years and beyond.

Further Information

  • German UFA propaganda film of the BR 52 lifecycle [in German]
  • Detailed overview of every (!) BR 52 produced, sorted by number and partially with photo(s)




Gedeckte Güterwagen - Covered Freight cars
15t Gedeckter Güterwagen VBA A2 Gattungsbezirk "G München"
...transporting German and ...
...(captured) Russian soldiers
Horses
Female Ukrainians
15t Gedeckter Güterwagen ABA Gattungsbezirk "Gr Kassel"
..."Gr" meaning: modified for conversion to the Russian broad gauge

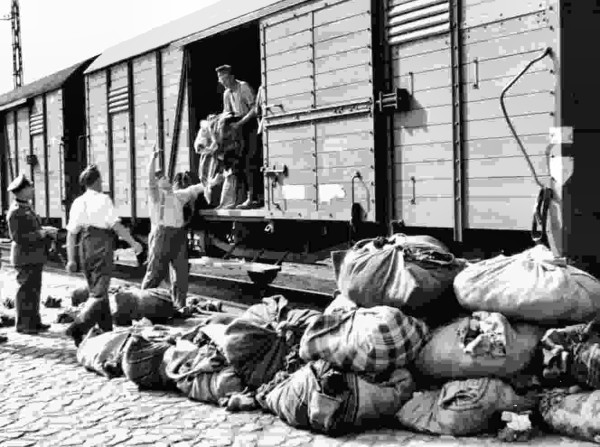

Cloth donations for the front
Locals unloading
French "Wagon Couvert" 20t OCEM-19 Ep.II short wheelbase
OCEM-19 transporting young Russians to the Reich
French cars in the Russian Winter
French cars and 1941 Ford 1.5-ton truck
French "Wagon Couvert" 20t OCEM-29 Ep.II long wheelbase
...frequently used for deporting forced laborers to Germany




Offene Güterwagen - Open Freight cars
Huge numbers of Red Army POWs fenced into "O-Wagen" of different types in 1941
"O-Wagen" (Offener Güterwagen) Ommr "Linz", loaded with Red Army POWs on their way of no return to deadly German camps




Geschützwagen - AA Gun cars

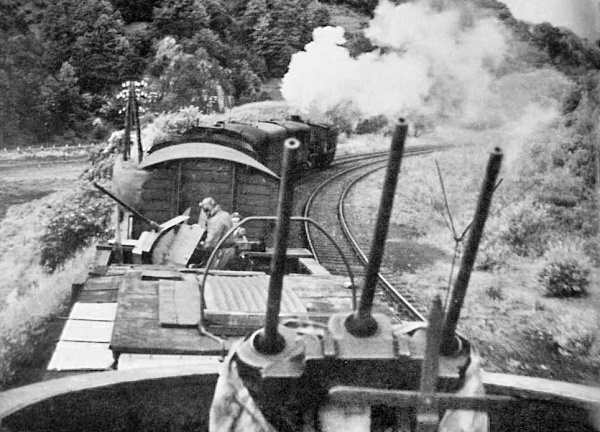

2cm Flak 38 "Geschützwagen I(E)" based on the 24.5t "O-Wagen" Omm[r]u "Villach", in combat against the ubiquitous strafing P47 "Thunderbolt"
"Geschützwagen I(E)" with 2cm Flak 30

"Geschützwagen II(E)" with Luftwaffe 3.7cm Flak 37 AA gun as AA protection, based on the chassis of "R[ungen]-Wagen" Stuttgart Rms or Ulm Rmms
Closed rear gun gondola
Open rear gun gondola
2cm Flak 38 Vierling
3.7cm Flak 36

Wide-spread Geschützwagen ("E.Tr."["Eisenbahn-Transportschutz"]) with twin concrete turrets, each one equipped with the effective 1.5/2 cm MG 151/15/20 "Drilling" (triple mount), based on the late "Romm[h]s Ulm/Berlin" R[ungen]-Wagen




Armour and Softskin Transport
Main railway cars for transport of armour and softskins [in scale]

7.5cm Pak 40 "Marder I" SPG on Ommr Linz
"Marder I" leaving the 24.5-ton platform car
StuG III Ausf.G on Ommr Linz

Captured Polish C7P Artillery Tractor
on R Stuttgart
PzJg.38(t) für 7,62 cm Pak 36 “Marder III” on R Stuttgart
3-ton 6x4 Henschel 33 Field Kitchen truck on R Stuttgart

15cm sIG 33(Sf) auf Pz.I B
on Rs Stuttgart

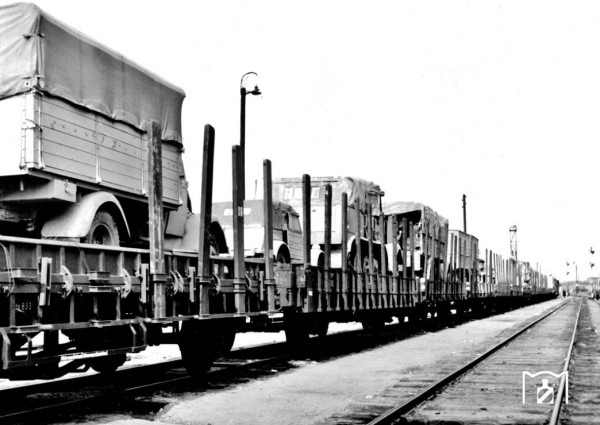

3-ton Trucks, Kübelwagen and Halftracks on Rs Stuttgart
Zgkw.8t m.3.7cm Flak 43 (SdKfz.7/2) on Rs Stuttgart

PzKpfw.V Ausf.A "Panther"
on SSys Köln
PzKpfw.V Ausf.A "Panther" on SSys Köln. Note the German Shepard
PzKpfw.V Ausf.G "Panther" in late camo on SSys Köln

PzKpfw.V Ausf.G "Panther"
on SSyl Köln
PzKpfw.V Ausf.G "Panther" in late camo on SSyl Köln
PzKpfw.IV Ausf.J and Ford "Maultier" on SSyl Köln

Panzerjäger Tiger(P) "Ferdinand"
on SSyms Köln
Panzerjäger Tiger(P) "Ferdinand"
on SSyms Köln
Panzerjäger Tiger(P) "Ferdinand" in "Spidernet" camo on SSyms Köln

Two sorts of tank trains :
  • S-Trains ("Sonderzüge"), for heavy tanks - avg. 30 to 35 cars, carries from four to eight tanks, 125 soldiers, and other equipment. Tanks are distributed out along the entire length of the train.
  • Sp-Trains ("Sonderpanzerzüge") for light and medium tanks - avg. 33 cars, carries approx. 20 medium tanks, as well as personnel and other equipment.
Loading of a tank division requires 70+ trains and will take at least 12+ hours under normal conditions.
The train movement covers from 150 to 200 miles per day for long movements within Germany, and about 60 miles daily in areas near the combat zone.
