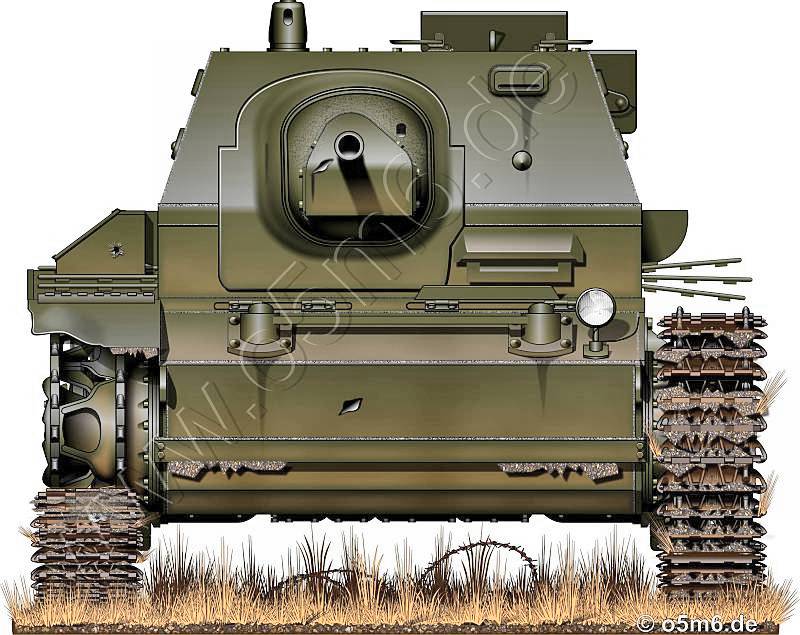

Early production model w/o front shield, antenna and hull hooks
SU-76ii

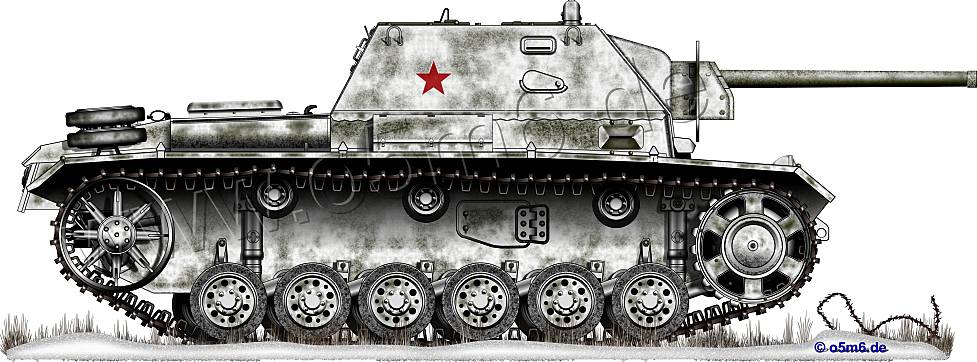

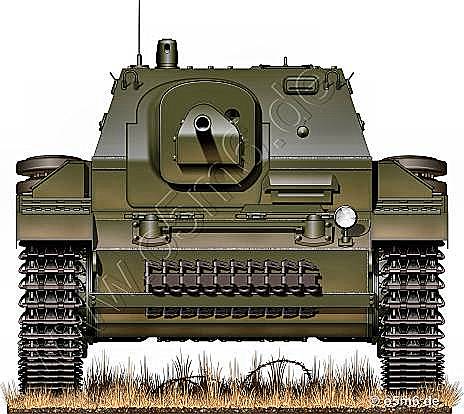

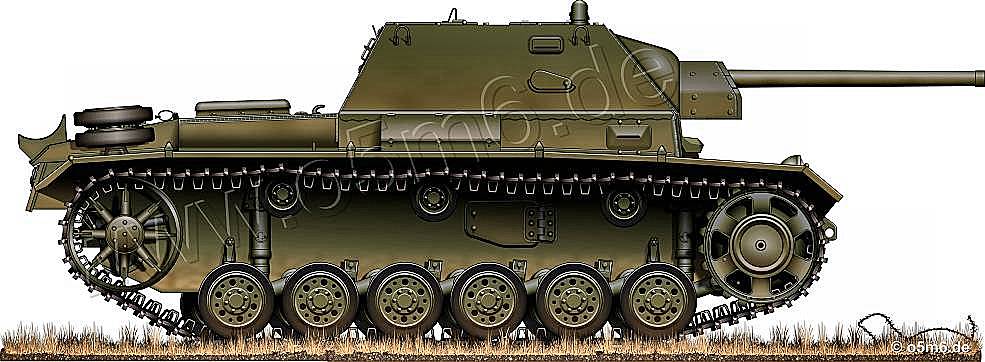

Series production model with front shield

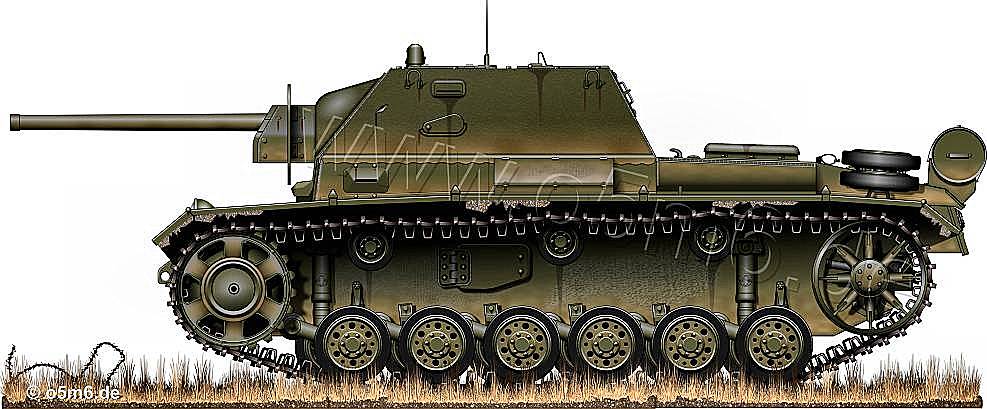

Series production model with front shield
Self-propelled Gun SU-76i
In 1942, the demand for mobile direct artillery support of the infantry was still unanswered in the Red Army.
The first installation of the ZiS-3 76mm divisional gun on the lengthened T-70 chassis, the so-called »SU-12«, later SU-76, at GAZ and plant No.38 at Kirov during winter 1942/3 resulted in a desaster.
Fortunately, the Red Army had recently captured hundreds of German StuG and Pz.III chassis at Stalingrad which could be used as a stopgap.
Eventually, GKO gave the production order to plant No.37 at Sverdlovsk, part of »Uralmash«.
In February 1943, the designers at plant No.37 mounted a box-like, side-angled fighting compartment on the German Pz.III chassis and chose the 76.2mm F-34 gun as main armament.
One roof hatch, a two-piece rear hatch and, on 20 command vehicles. a German copula granted access and later two additional fuel tanks were installed to the rear engine deck.
As proper ventilation remained an unsolved problem, the compartment roof was later removed completely.
In total, roughly 1200 vehicles were produced between May and November 1943 and proved rather useful during the decisive summer battles of summer 1943.
As Pz.III trophy chassis amount declined, the production was finally stopped for the lack of spare parts.

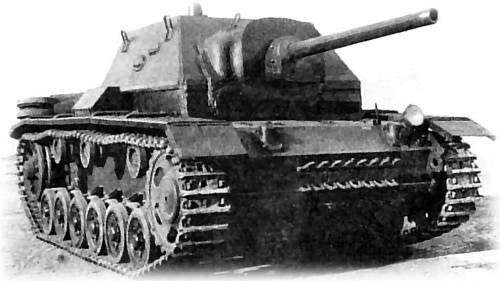

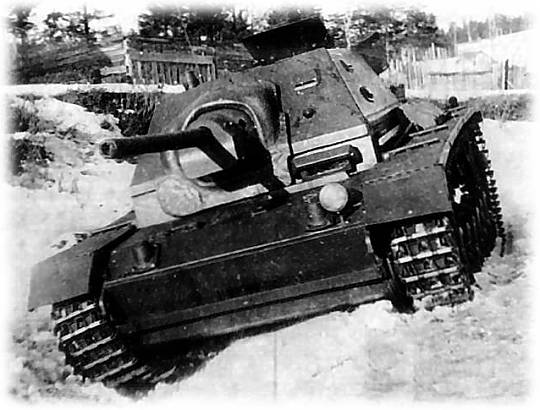

Early production model

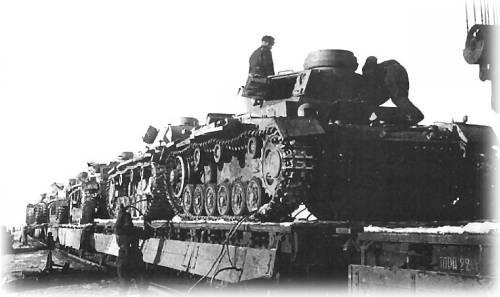

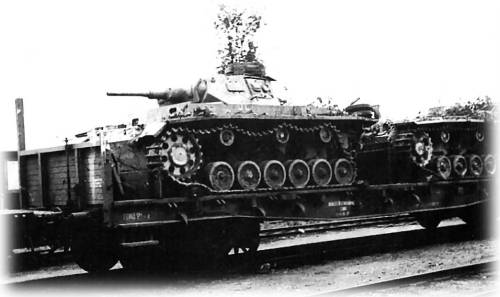

Masses of captured Pz.III on flatcars being brought to Moscow repair plants

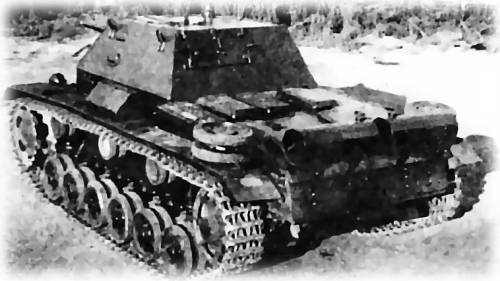

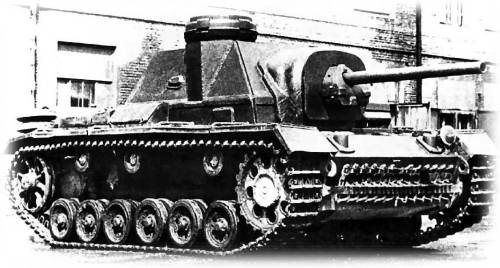

One of only twenty command vehicles with German Pz.III command copula installed
