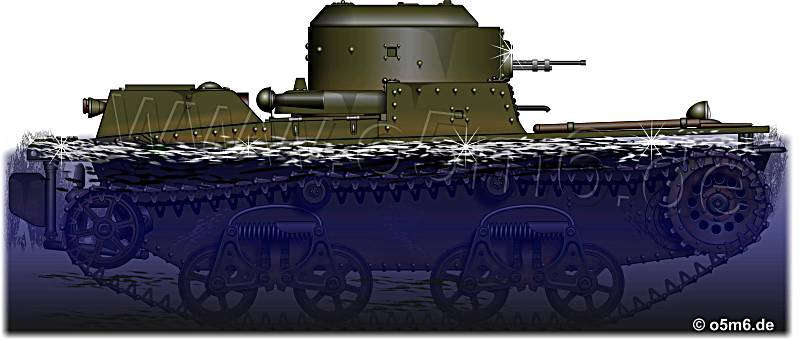

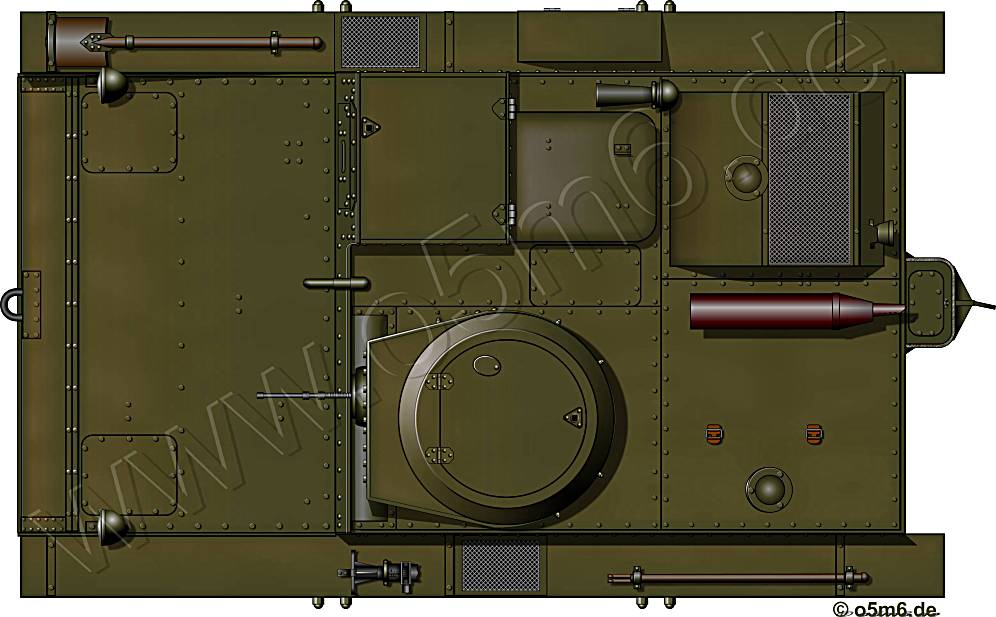

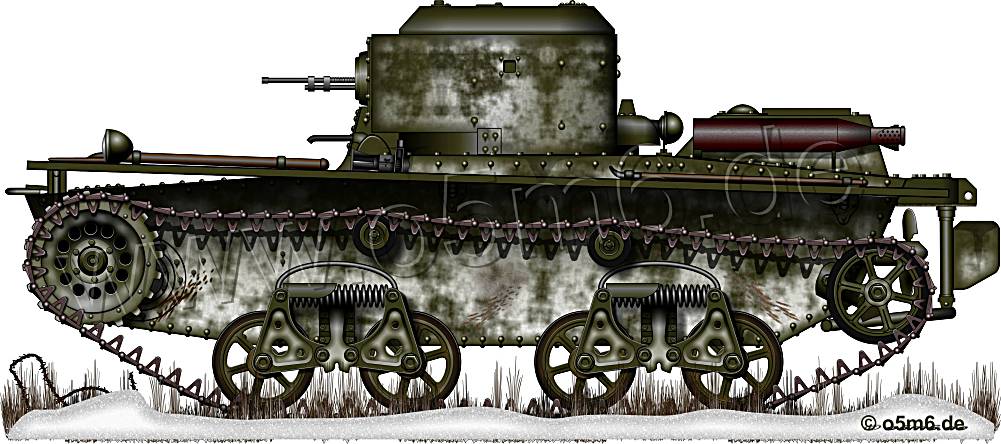

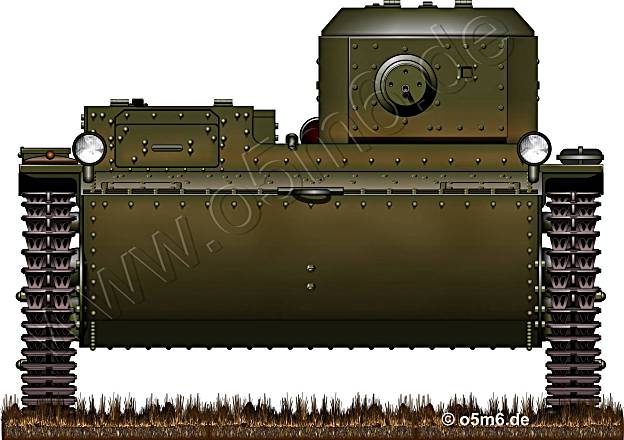

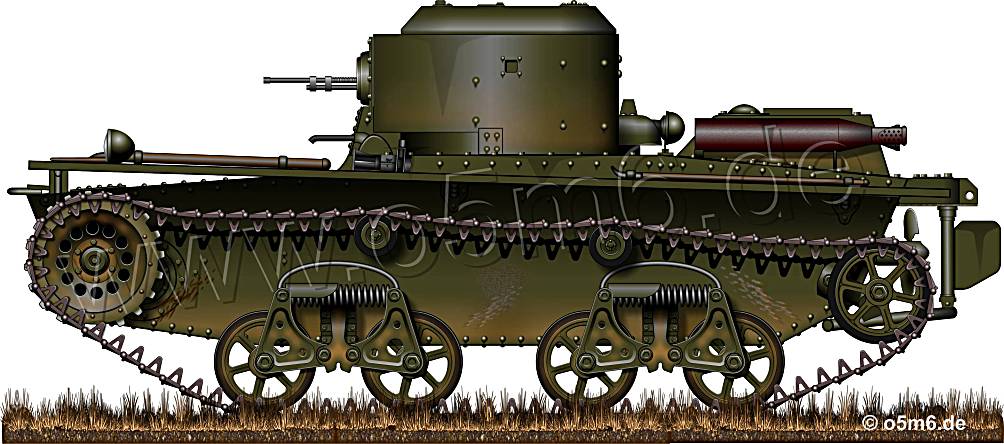

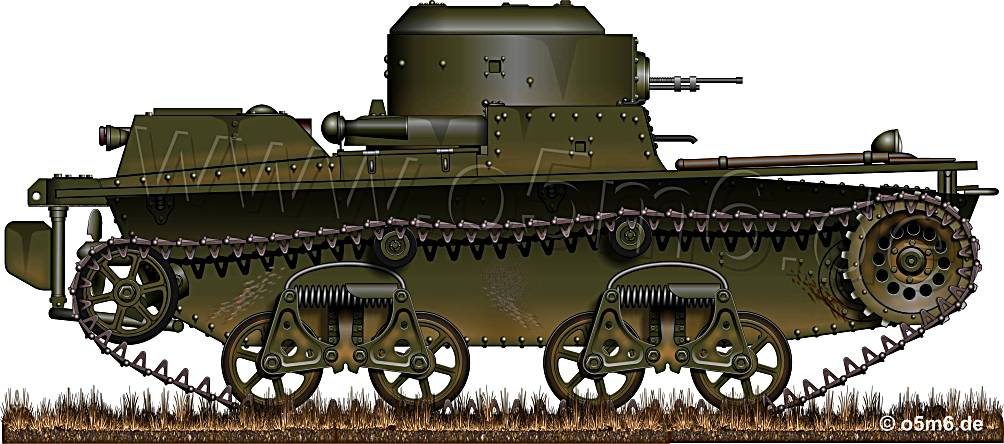

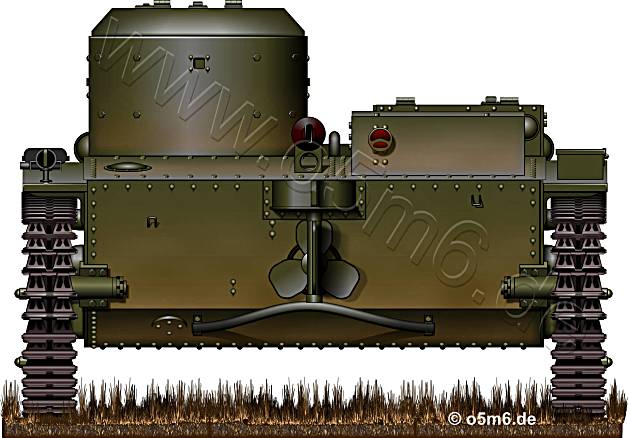

T-38 amphibious Tank
Amphibious Tank T-38
The task of modernizing the T-37 fell again to the design bureau of Zavod N°.37 in Moscow directed by N. Astrov with N. Kozyrev as the chief engineer.

The resulting tank had a partially welded, partially riveted housing; additional floats, as on the T-37 A, were not provided.
The tower of cylindrical form was displaced to the left.
The result was the T-38, lower and wider than the T-37 yielding better behaviour in water, but still using the proven GAZ-AA power train.
In some units, some T-38 tanks were improved by the addition of a 20mm ShVAK cannon in place of the usual DT machine-gun.

Production ceased in 1938, but.started again in 1939 with the improved T-38M, which used the power train and engine of the GAZ-M1.
In all, from 1936 until 1939 were finished 1340 T-38 of which an even lower proportion were fitted with radios than in theT-37, only 165.

In 1941 the T-38, together with the T-37A, served in the reconnaissance subdivisions of tank divisions and allmost all were lost by the end of this year.
However, the last combat employment of T-38 took place in 1944, when one battalion of these machines together with the battalion of the equally amphibian Ford GPA participated in fighting the Finnish Army at the Svir river.



All drawings © o5m6.de .All rights reserved.
No publication in any form without the author's written permission.
Last Updated: October 16, 2008
